Operation of Litemover is possible in 3 different ways.
- Manual control via the handset via the buttons.
- DMX control, hard wired with a dmx cable.
- CRMX control, via lumenradio inside.
When powered via the handset , the buttons of the handset also works while DMX or CRMX is
present.

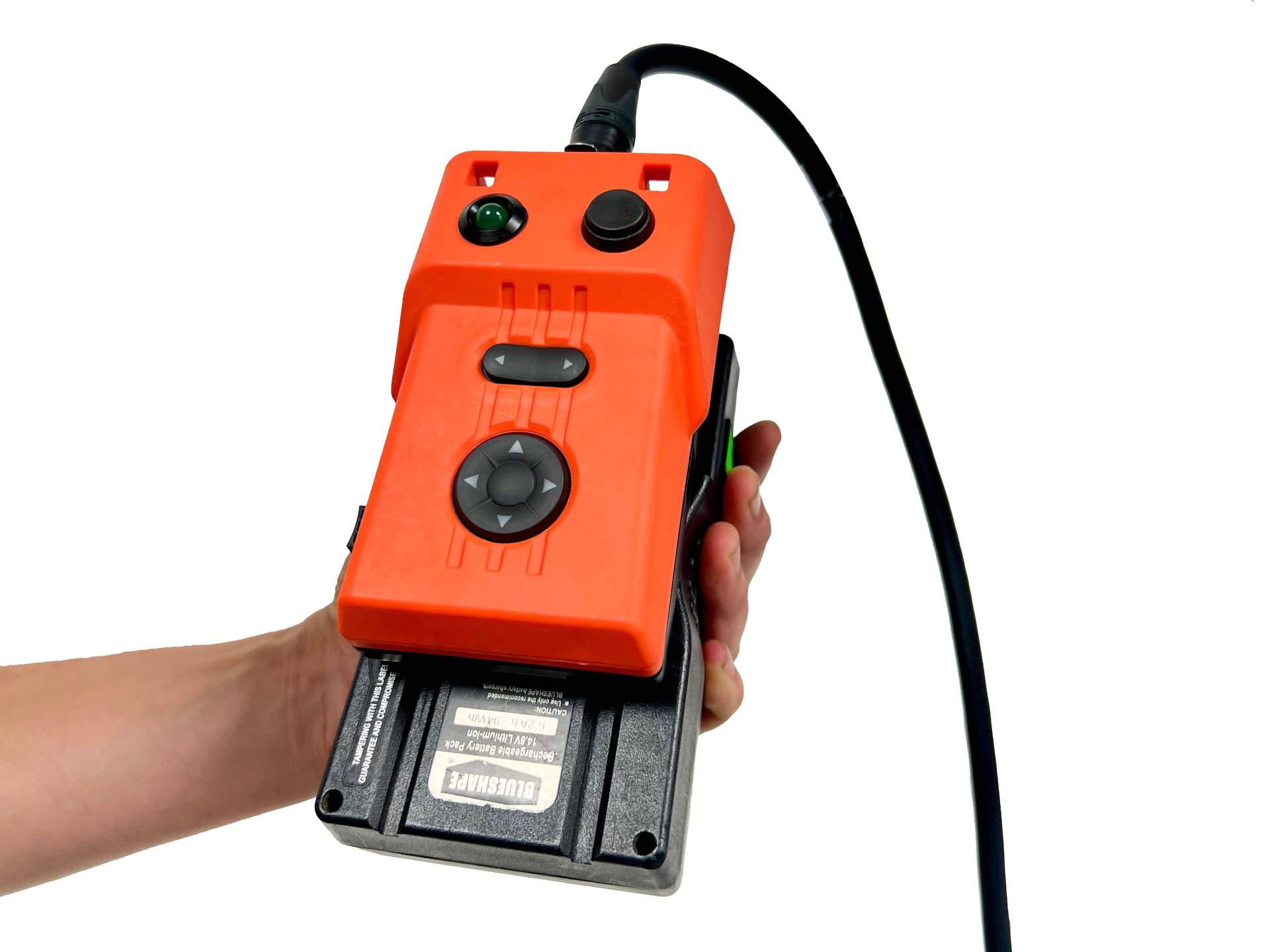

Manual control via the handset with the combined Power and Signal cable
Status light on the handset:
On = motor movement is detected
Blinking light = Motor is at the end of the tilt or focus movement (overcurrent)

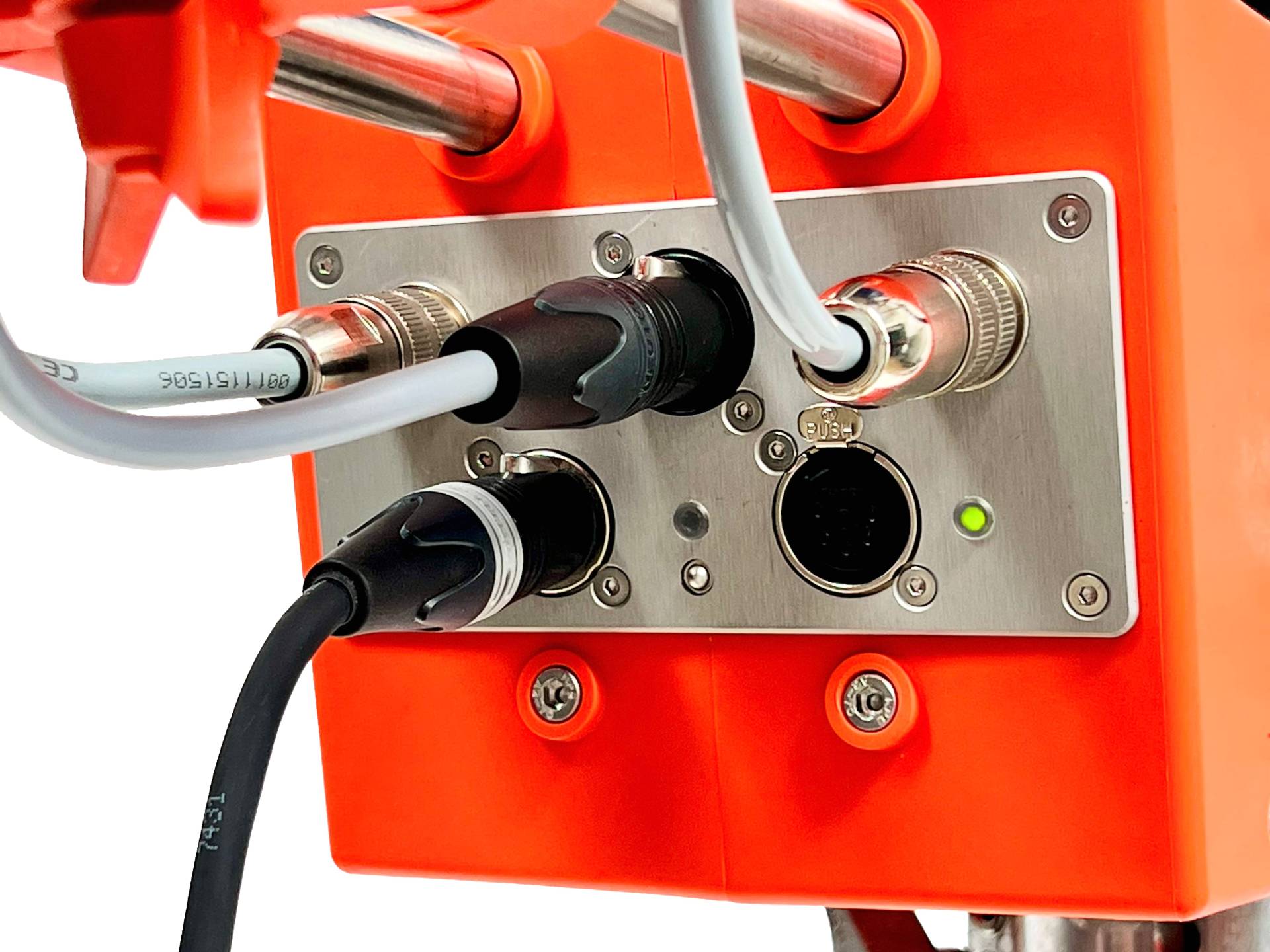

DMX control via DMX cable
CRMX – Timo2
Timo2 (CRMX – with full RDM support) control via pushbutton and blue status light:
Off: unlinked
Fast blink: linked, no rf link
Slow blink: linked, rf link, no DMX
On: linked, rf link, DMX reception
Hold button below the status light for 2 sec to unlink Timo2.
