Litemover in a hanging position

1

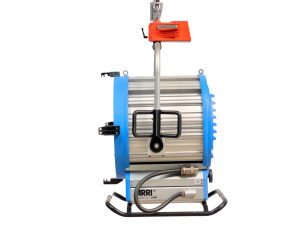

Hang the light fixture on the Pan unit
1
2

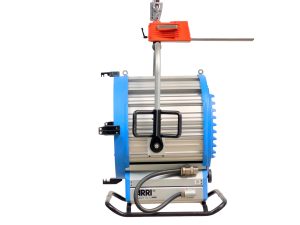

Attach 2 long rods by screwing them in the Pan unit.
2
3
Attach the 90 ̊connector and slide the Tilt motor over the rods pointing down and plug the cables in
3

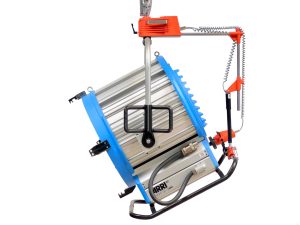

Slide the Tilt motor over the rods, and plug the cable in the Pan unit
4
Slide the Tilt motor over the rods, and plug the cable in the Pan unit
4

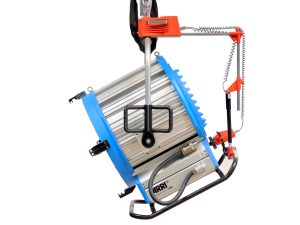

ALWAYS SECURE your hanging fixture with EXTRA SAFETY CABLE!
5
ALWAYS SECURE your hanging fixture with EXTRA SAFETY CABLE!
5

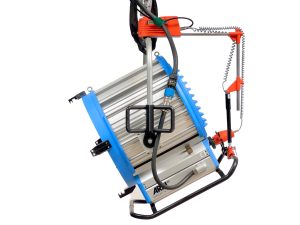

Connect the ballast or power cable of your light fixture on one of the side rails of the Pan unit
6
Connect the ballast or power cable of your light fixture on one of the side rails of the Pan unit
6
