Litemover

An innovative, motorized device especially developed for film lamps.



Dealers
Manuals
Pan, Tilt and Spot.

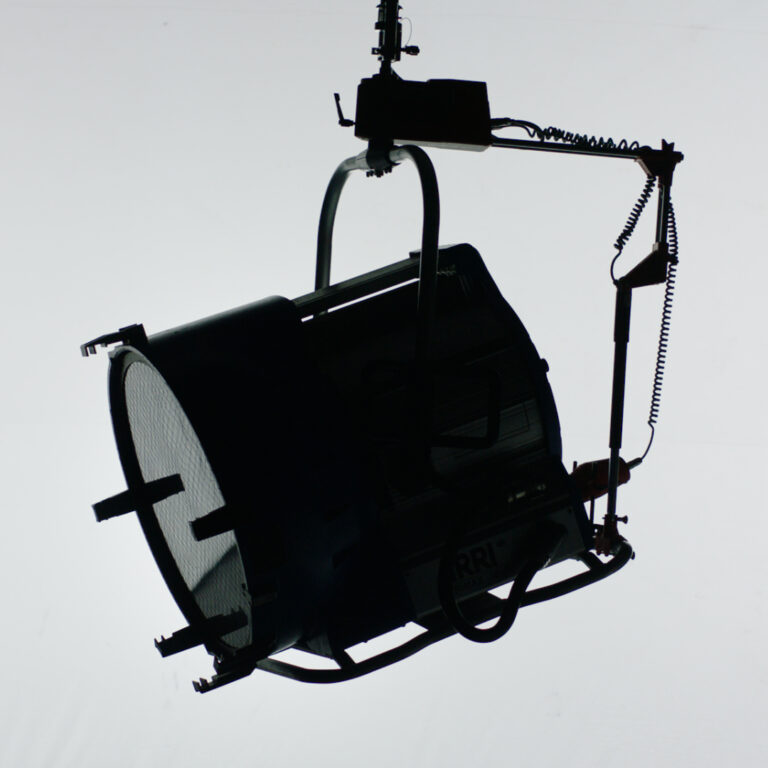

The Litemover is an innovative, motorized device especially developed for film lamps.

Easy Connect.

The idea behind the Litemover is to easily connect to a lot of different light fixtures, without changing anything on the fixture itself.

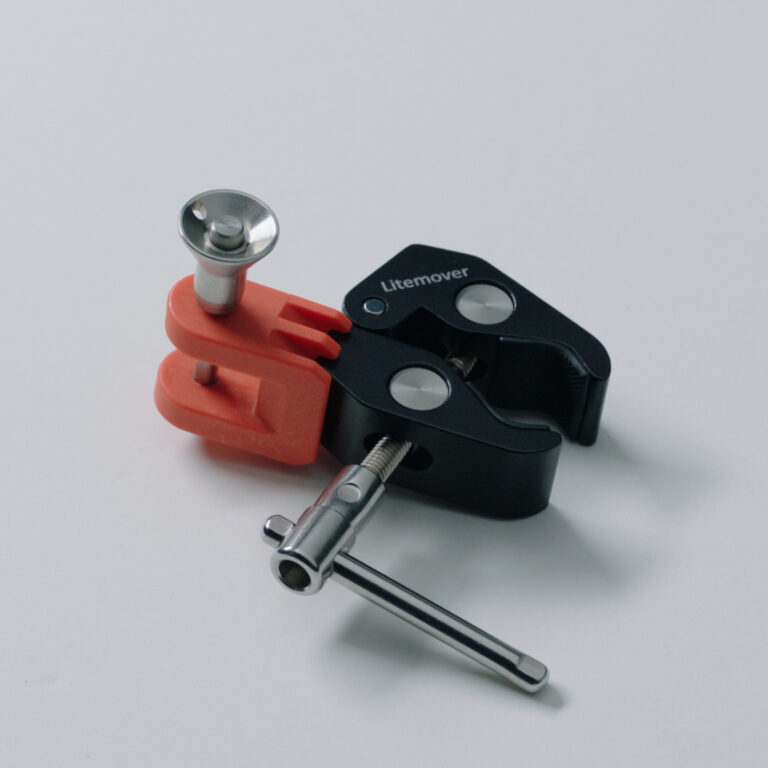

Large range of adapters.
  • ARRI / Filmgear HMI’s
  • ARRI - Skypanel S360
  • Cineo - Reflex15
  • Creamsource - Vortex8 (when used in multi yoke’s)
  • CRLS reflector system - C100
  • K5600.com - Alpha range HMI’s
  • Matthews - Xeno Mirror Reflector 42”x42”

(More to come)

Control.

Control your litemover via the handset or via DMX. Of course, a CRMX receiver is built in and can therefor easily be integrated in your existing system.



Settings.

Changing the settings for the Litemover is done by RDM. For this you need a RDM controller like the City Theatrical DMX-Cat od the Swisson XMT-350.

Technical.

Operating modes

  • Via a handheld controller (also in combination with DMX
  • DMX
  • CRMX

Power solutions

  • 12 Volt VCD / 4 Amp. max.
  • 220 – 110 Volt AC (V-Lock adapter included in the set)
  • V-Lock Battery 14,4 Volt (optional)

DMX table

View DMX table

Change setting via RDM

Profile available for Gafferscontrol and Blackout.

Maximum load capacity

100kg / 220lbs

Supplied in a practical case with wheels.

Channel 1: ON/OFF
OFF
# 0-254
% 0-99
ON
# 255
% 100
Channel 2: PAN
OFF
# 0-50 / 103-152 / 205-255
% 0-19 / 40-59 / 80-100
LEFT
# 51-102
% 20-39
RIGHT
# 153-204
% 60-79
Channel 3: TILT
OFF
# 0-50 / 103-152 / 205-25
% 0-19 / 40-59 / 80-100
UP
# 51-102
% 20-39
DOWN
# 153-204
% 60-79
Channel 4: FOCUS
OFF
# 0-50 / 103-152 / 205-255
% 0-19 / 40-59 / 80-100
LEFT
# 51-102
% 20-39
RIGHT
# 153-204
% 60-79
